Table of Content
- Overview of low voltage and high voltage LED strip lights.
- How does AC 110v or 220v LED strip work?
- How does DC 12v or 24v LED strip work?
- What are the Applications of high voltage LED strip?
- What are the Applications of low voltage LED strip?
Contact us to provide you for LED strip projects service.

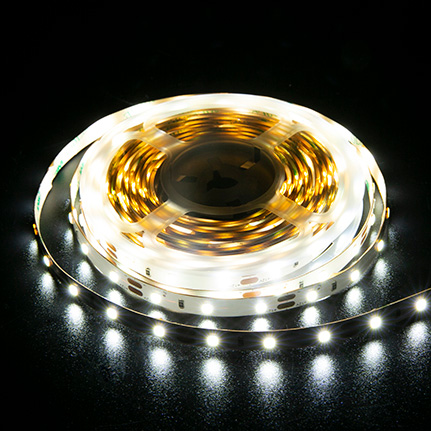

Overview of low voltage and high voltage LED strip lights.
The LED light strips is distinguished by voltage with a high voltage and a low voltage LED strip lights.
The high voltage is 110V and 220V LED LED strip, which is the ordinary household voltage. Also called ac powered LED light strips.
Due to high voltage, the calorie of the unit length is much more than the LED low voltage strip lighting, which directly affects the life about 10, 000 hours.
The high voltage LED strip light usually has frequent flash. It needs to be driven by high voltage drivers. It can work normally by connecting the 220V LED power supply. Generally, LED strip factory can be configured directly.
The 220V LED strip is relatively commonly used, and its length can reach 100 meters per roll. Because of the high power, its lumen is high, even reach 1000LM-1500LM one meter.
The length of the high voltage LED strip usually is 30-50 meters per roll.
The high voltage is 110V and 220V LED LED strip, which is the ordinary household voltage. Also called ac powered LED light strips.
Due to high voltage, the calorie of the unit length is much more than the LED low voltage strip lighting, which directly affects the life about 10, 000 hours.
The high voltage LED strip light usually has frequent flash. It needs to be driven by high voltage drivers. It can work normally by connecting the 220V LED power supply. Generally, LED strip factory can be configured directly.
The 220V LED strip is relatively commonly used, and its length can reach 100 meters per roll. Because of the high power, its lumen is high, even reach 1000LM-1500LM one meter.
The length of the high voltage LED strip usually is 30-50 meters per roll.
The low voltage is 3V/ 36V/ 12V/ 24V LED strip light , also known as dc powered LED strip lights.
Because of its good heat dissipation performance, the low voltage LED strip light can be as high as 30000-50000 hours.
The ability to over current of low voltage LED strip lights is relatively weak with the thin PCB board, so the length of the LED strip is generally 5 meters per roll and 10 meters per roll.
Beyond this length, due to the pressure drop, the brightness of the lights will gradually darkens, multiple wiring connection and multiple LED power supply is required to maintain the brightness of the light strip.
Currently using constant stream design, the longest connection length of the low voltage LED strip can reach 15-30 meters per roll, as well as PCB board of the strip should be thicker to increase the current tolerance.
How does AC 110v or 220v LED strip work?
The high voltage LED strip light is relatively simple than the low voltage LED light strips in installation. They can directly use the high voltage LED strip driver by accessing the home LED power supply.
Due to the 110V or 220V which is a dangerous voltage and is suitable for places that cannot be contacted by the human body. It is safety when the high voltage LED strip lights are installed in high positions with buckle to fix the installation that people cannot touch them. So there must be a protective cover to prevent humans from high voltage LED strip contacting directly.
How does DC 12v or 24v LED strip work?

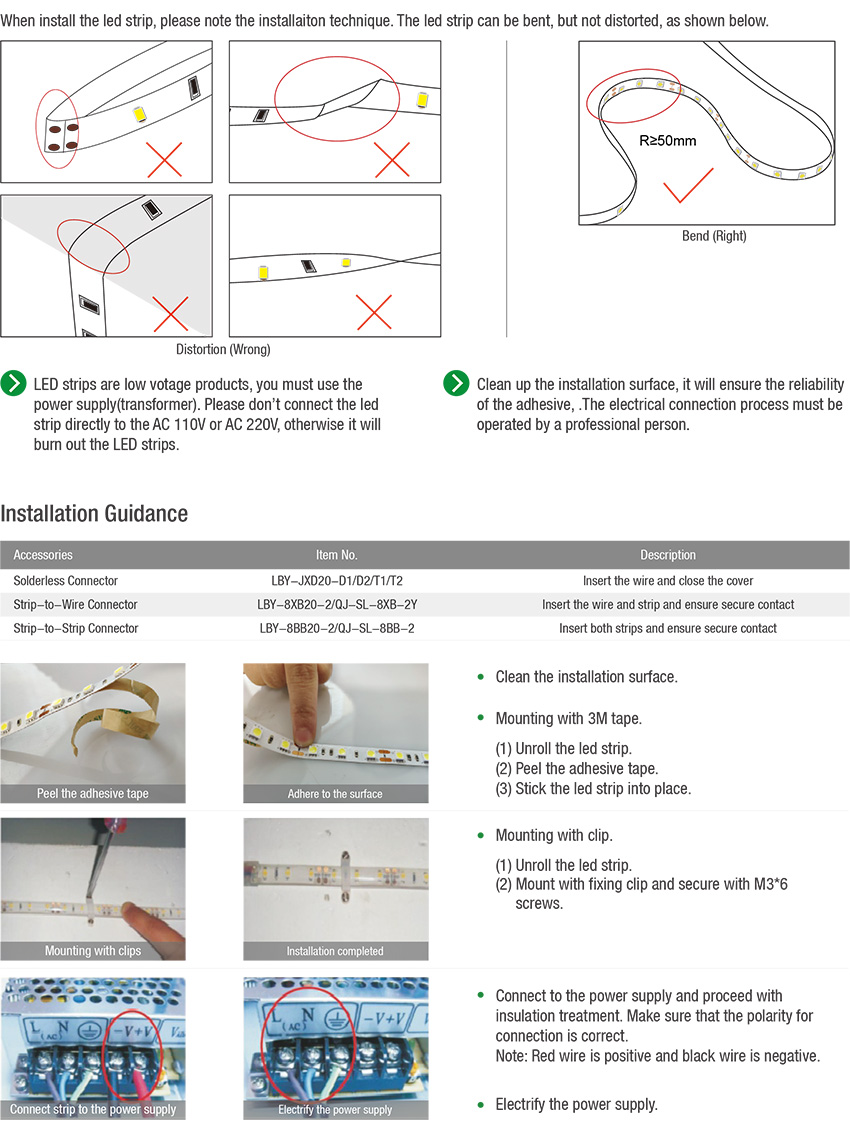

The dc powered LED strip lights must be installed after the DC power supply, adjust the LED power supply voltage to the voltage of the LED strip. The power supply’s voltage and the LED strip’s voltage are consistent. Otherwise, the LED strip will be easily damaged.
Under the work of DC voltage, it is a safe and human can touch them directly.
Under the work of DC voltage, it is a safe and human can touch them directly.

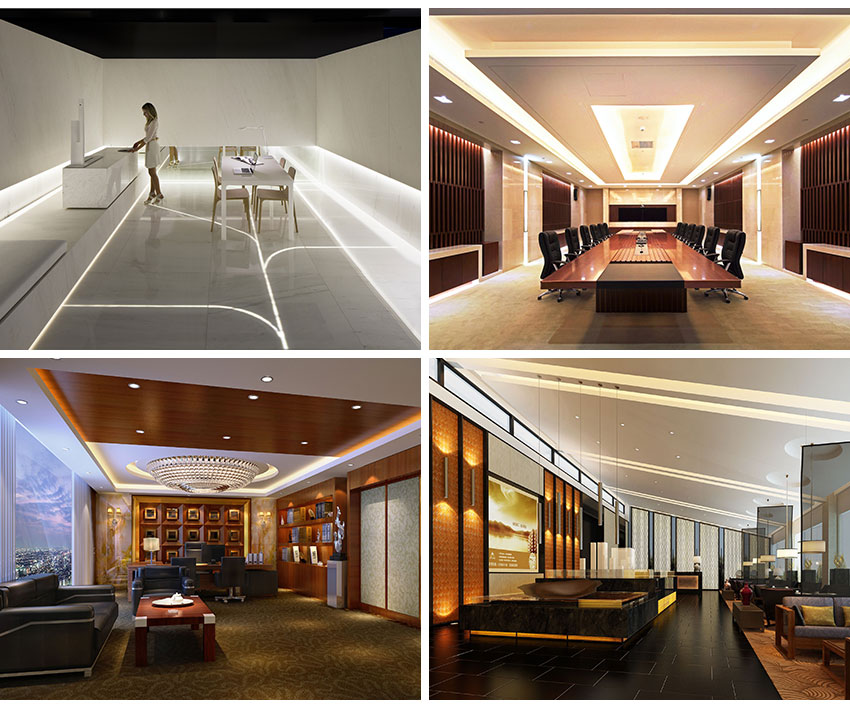

What are the Applications of high voltage LED strip?
High voltage LED strip cannot be directly contacted by the human body. If it is installed in steps and fences will be easy to danger, so it is installed in places with high location, such as ceiling and walls.

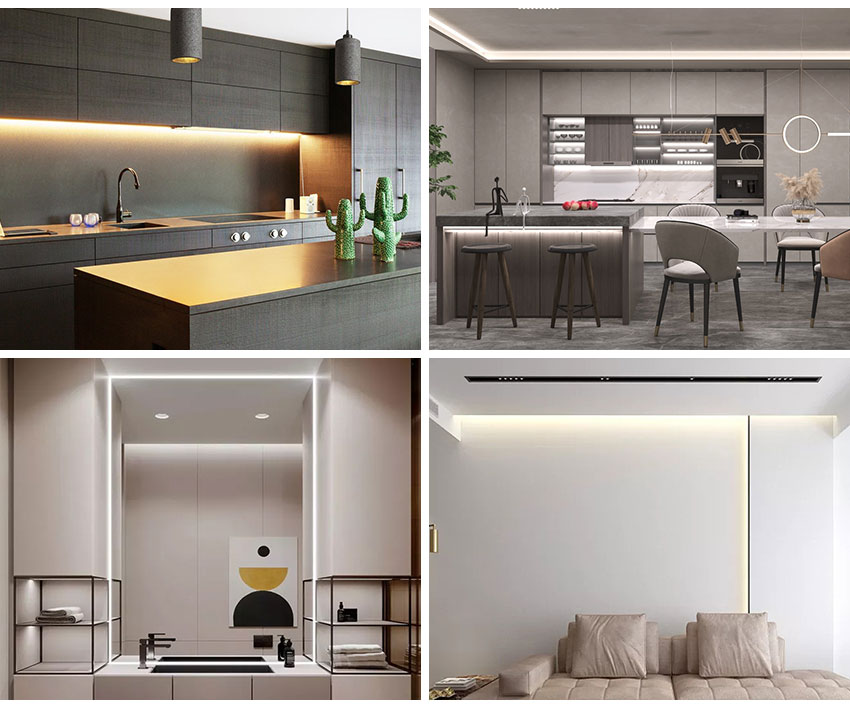

What are the Applications of low voltage LED strip?
Because the low voltage LED strip lights is very convenient to use, it can be affixed to anywhere, such as narrow bookcases, showcases, wardrobes, etc., the shape can be changed, turning, curved.
Therefore, the low voltage LED strip can be used in many living scenarios, such as home lighting, pools lighting, outdoor building, mall atmosphere lighting design, landscape lighting design, park, road, bridge and other lighting design and so on.
LEADBEYOND LED is an integrated manufacturer from China of LED strip and LED power supply, controller and LED strip light accessories. If you wanna help with your LED strip projects , please contact us directly, we will provide you with one-stop service.
Therefore, the low voltage LED strip can be used in many living scenarios, such as home lighting, pools lighting, outdoor building, mall atmosphere lighting design, landscape lighting design, park, road, bridge and other lighting design and so on.
LEADBEYOND LED is an integrated manufacturer from China of LED strip and LED power supply, controller and LED strip light accessories. If you wanna help with your LED strip projects , please contact us directly, we will provide you with one-stop service.
