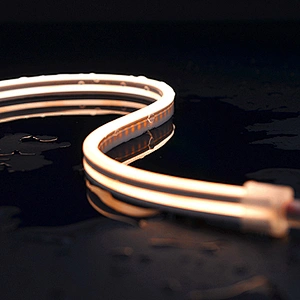

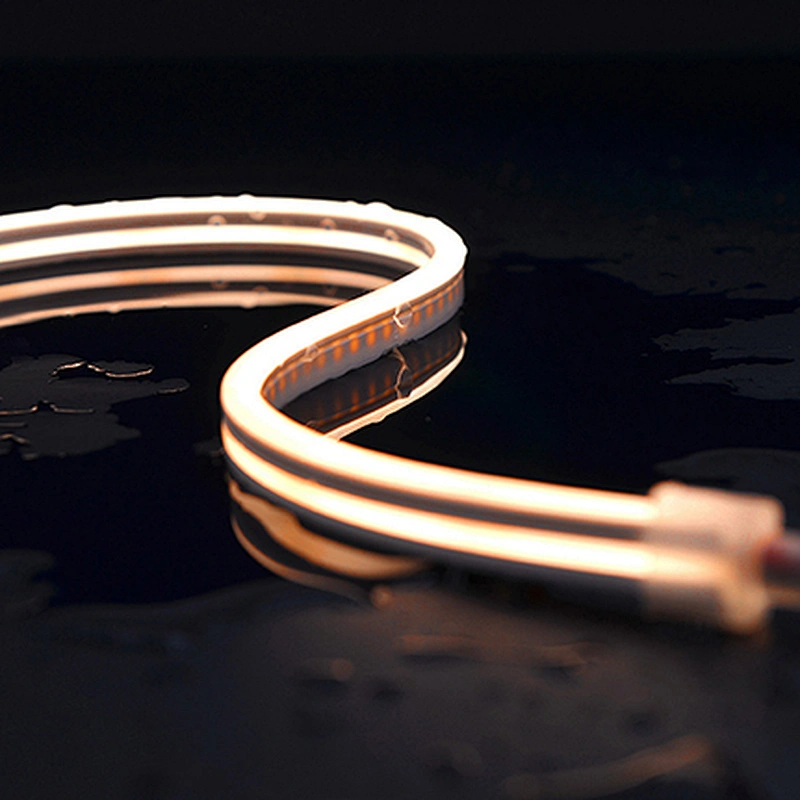

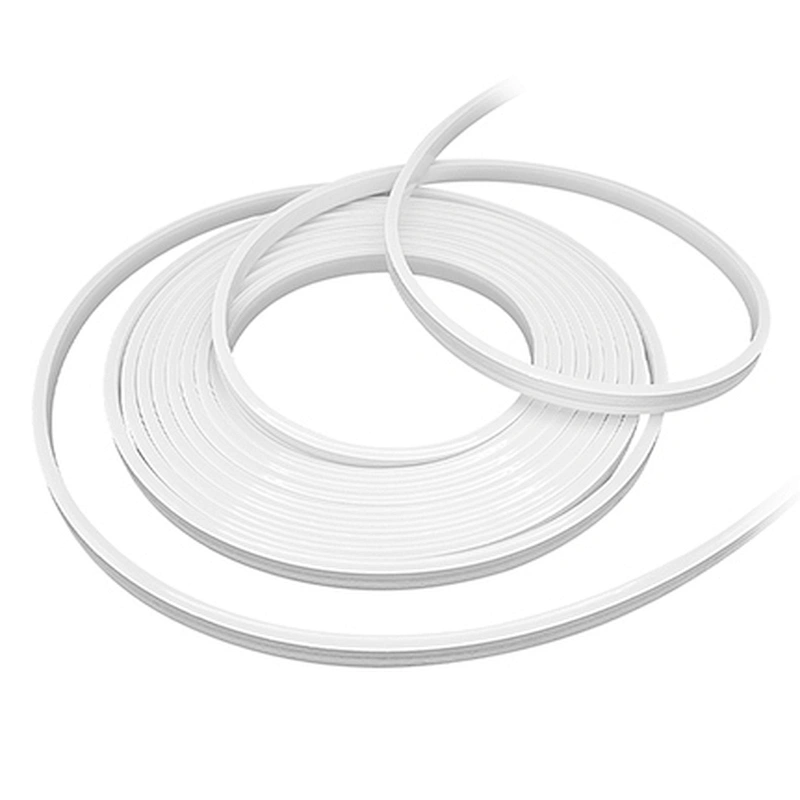

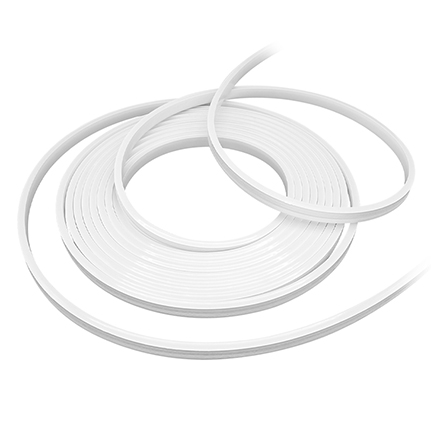

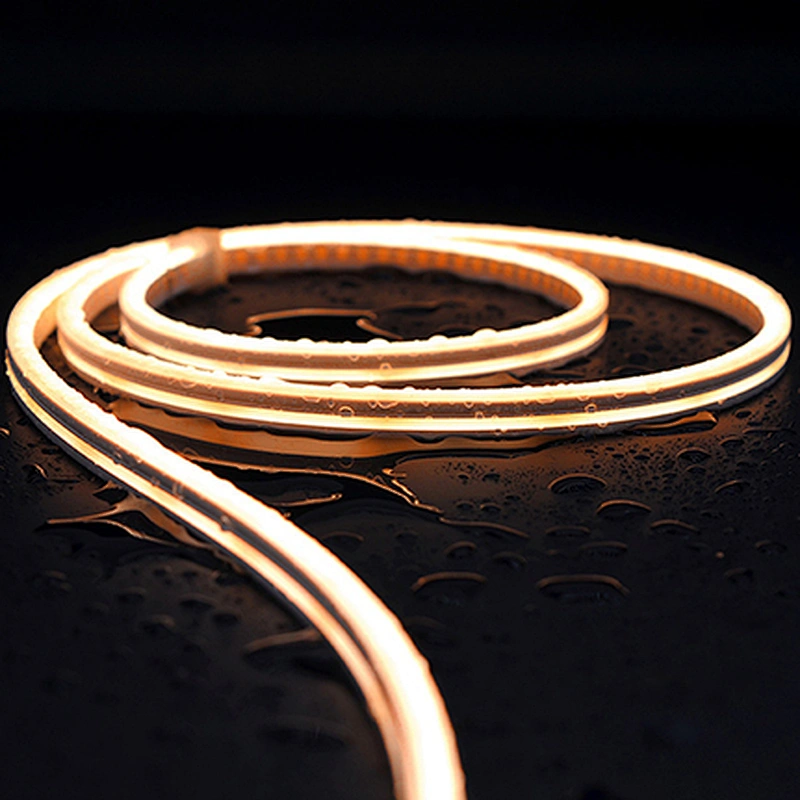

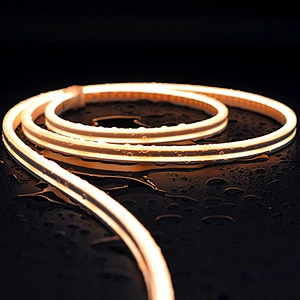

0408 DC24V IP65 Silicone Neon LED Strip

Model NO.: SE120JC1-N0408

1. Dimension: 5000*4*8mm
2. Voltage: DC 24V
3. Power: 6W/M
4. IP Grade: IP65
5. 3 years warranty

Product Description

Features

The neon LED strip is high light transmittance, environmental protection grade
Material: silicone LED strip, integrated extrusion molding process.
The 0408 neon strip adopts unique optical light distribution structure design, uniform lighting surface and no shadow.
IP65 flexible LED strip waterproof neon lights silicone tube, salt solution resistance, acids & alkalis, corrosive gases, fire and UV.
Our silicone LED strip has excellent toughness, simple and stylish appearance, delicate and unique.
3 years warranty, neon strip's working life ≥30000 hours.

Parameters
Part Number	SE120JC1-N0408
Dimensions	500048mm
LED Type	2835
LED Qty	120LEDs/m
Voltage	DC24V
Power	6W/M
Luminous	180LM/M
CCT	2700-6500K/RGB
IP Grade	IP65

Neon LED Strip Series
Model	Parameters	Color/CCT
SE120JC1-N0408	SMD 2835, 120LEDs/M, DC24V, 6W/M, double-layer, 500048mm, 5M per reel Silicone, IP65	2700-6500K/RGB
SE120JC2-N0612	SMD 2835, 120LEDs/M, DC24V, 8.6W/M, double-layer, 5000612mm, 5M per reel Silicone, IP65	2700-6500K/RGB
SE120JC2-D0613	SMD 2835, 120LEDs/M, DC24V, 8.6W/M, double-layer, 5000613mm, 5M per reel Silicone, IP65	2700-6500K/RGB
SE120JC1-D0816	SMD 2835, 120LEDs/M, DC24V, 9.6W/M, double-layer, 5000816mm, 5M per reel Silicone, IP65	2700-6500K/RGB
SE120JC2-N1010	SMD 2835, 120LEDs/M, DC24V, 8.6W/M, double-layer, 50001010mm, 5M per reel Silicone, IP65	2700-6500K/RGB
SE120JC2-N1018	SMD 2835, 120LEDs/M, DC24V, 8.6W/M, double-layer, 50001018mm, 5M per reel, Silicone, IP65	2700-6500K/RGB
SE120JC3-N1212	SMD 2835, 120LEDs/M, DC24V, 9.6W/M, double-layer, 50001212mm, 5M per reel, Silicone, IP65	2700-6500K/RGB
SE120JC3-N1220	SMD 2835, 120LEDs/M, DC24V, 9.6W/M, double-layer, 50001220mm, 5M per reel, Silicone, IP65	2700-6500K/RGB
SE120JC1-D1225	SMD 2835, 120LEDs/M, DC24V, 9.6W/M, double-layer, 50001225mm, 5M per reel, Silicone, IP65	2700-6500K/RGB
SH60JD1-N1220-Q	SMD 5050, 60LEDs/M, DC24V, 14W/M, double-layer, 50001220mm, 5M per reel, Silicone, IP65	RGB
SE120JC1-O25	SMD 2835, 120LEDs/M, DC24V, 10W/M, double-layer, 50002525mm, 5M per reel, Silicone, IP65	2700-6500K/RGB
SE48JC1	SMD 2835, 48LEDs/M, DC24V, 18W/M, double-layer, 5000*18mm, 5M per reel, TPU, IP67	2700-6500K
SE42JC1-RGB	SMD 2835, 48LEDs/M, DC24V, 6.2W/M, double-layer, 5000*18mm, 5M per reel, TPU, IP67	RGB
SE42JC1-RGBW	SMD 2835, 48LEDs/M, DC24V, 8W/M, double-layer, 5000*18mm, 5M per reel, TPU, IP67	RGBW

Product Description

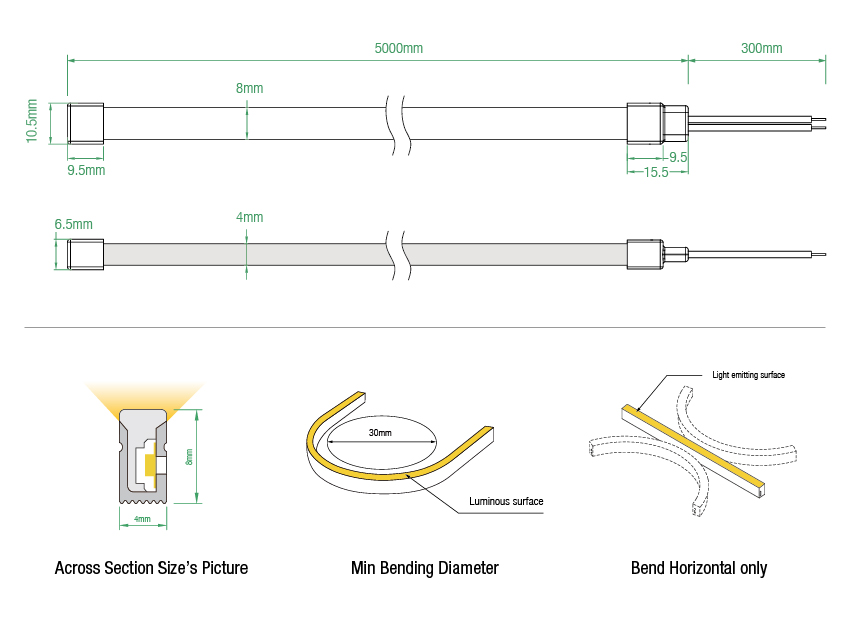

0408 DC24V Neon LED Strip supports IP65 waterproof silicone tube, light side with front cable entry, flexible, the across section demension is 4*8mm(W*H).

Covered by pure silicone, against yellowing.
Anti corrosion and resist to acids and bases.
Applicable for temperature range -50~200°C.
Highly flexible and easily to be shaped.
Lit with uniform illumination and no light spot.

Application

The neon LED strip lights used for city lighting, landscape lighting, commercial lighting and house contour lighting, etc.

neon led strip Application

Product Packaging

Installation Instructions

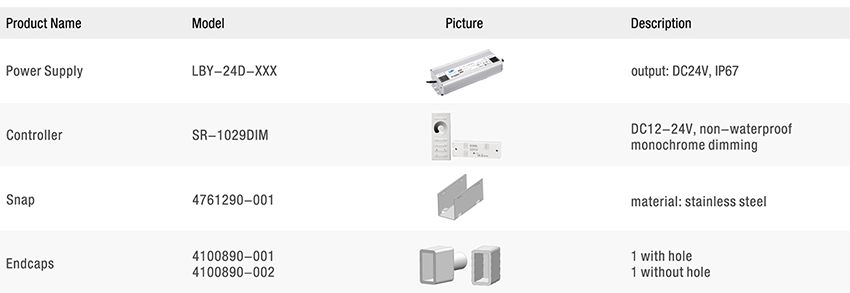

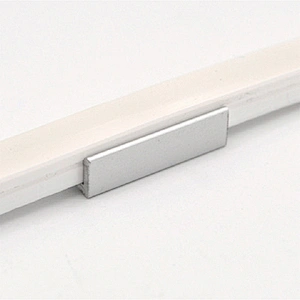

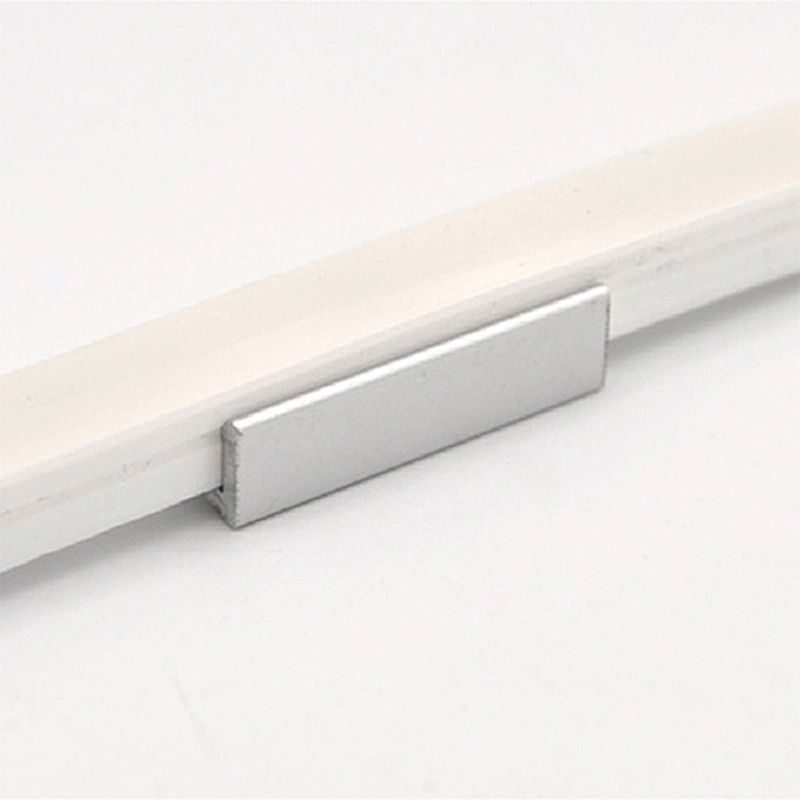

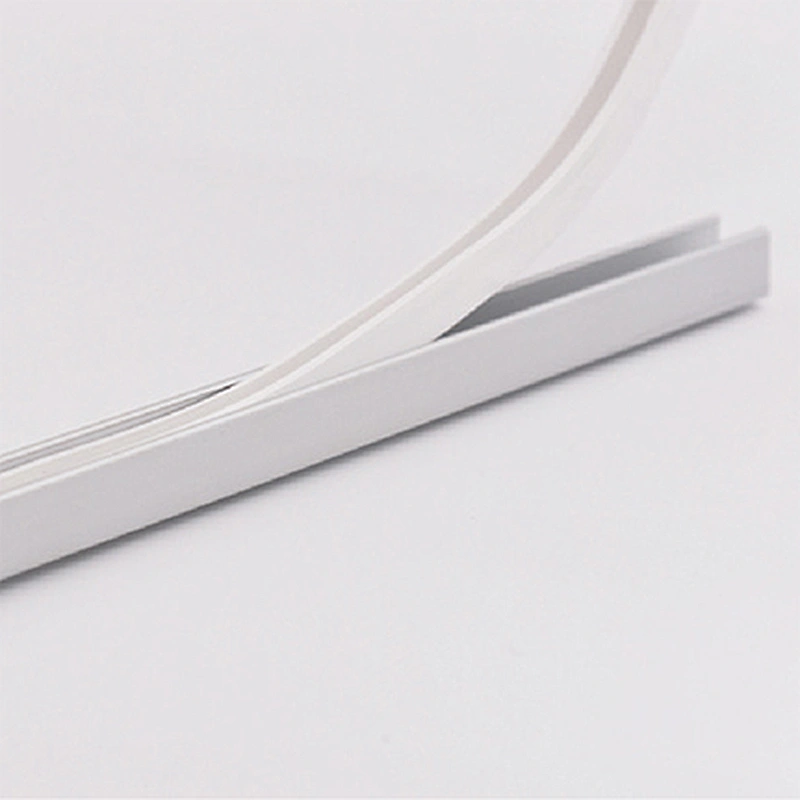

Accessories
