396LEDs SMD 2216 24 LED Strip Light

Model NO.: SZ396LC1

1. Dimension: 5000*10mm
2. Voltage: DC24V
3. Power: 21W/M
4. Beam Angle: 120°
5. 3 years warranty

Product Description

Features

LED strip light is powered by high output 2216 LED
24 LED strip light CRI 80/90/95 available
SDCM≤3, 1 BIN only
Double layer rolled copper FPC
2216 LED strip with 3M 300LSE tape attached
CE, RoHS,UL,TUV, BIS, CB and LM-80 certified
3 years warranty

Parameters
Part Number	SZ396LC1

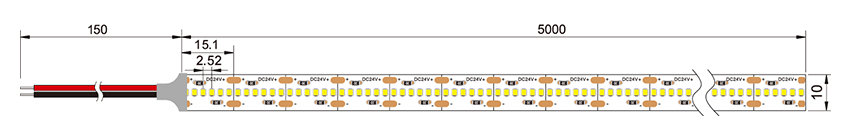

Dimensions	5000*10mm
LED Type	2216 LED
LED Qty	396LEDs/m
Voltage	DC24V
Power	21W/M
Luminous	1800LM/M
CCT	2700-6500K
IP Grade	IP20 (IP65/IP67/IP68 are customizable)

2216 LED Strip Series
Model	Parameters	Color/CCT
SZ180LC1	SMD2216, 180LEDs/M, DC24V, 12W/M, double-layer, 5000X 10mm 5M per reel	2700-6000K
SZ240LC1	SMD2216, 240LEDs/M, DC24V, 16W/M, double-layer, 5000X 10mm 5M per reel	2700-6000K
SZ300LC1	SMD2216, 300LEDs/M, DC24V, 18W/M, double-layer, 5000X 10mm 5M per reel	2700-6000K
SZ396LC1	SMD2216, 396LEDs/M, DC24V, 21W/M, double-layer, 5000X 10mm 5M per reel	2700-6000K

Product Description

396LEDs SMD 2216 24 LED strip light can offer different waterproof grade with IP20, IP65, IP67, ip68. Our customers can customizecan CCT: 2700K-6500K (Warm White, Natural White, Cold White).

The warm light is below 3000K, and the light is red and yellow, giving people a warm, quiet, and relaxing feeling.
The neutral light is between 3000K -5000K, and the content of red, green, and blue light accounts for the appropriate proportion. Neutral light is closest to natural light, giving people natural, comfortable, and bright.
The white light is above 5000K, and the blue light accounts for a large feeling, giving people a serious, cold, and low feeling.

Application

2216 24 LED strip light used for Window, Home, Sports Stadiums, Shopping Mall Lighting.

24 led strip light Application
