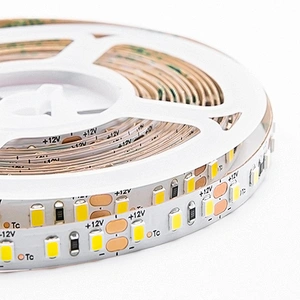

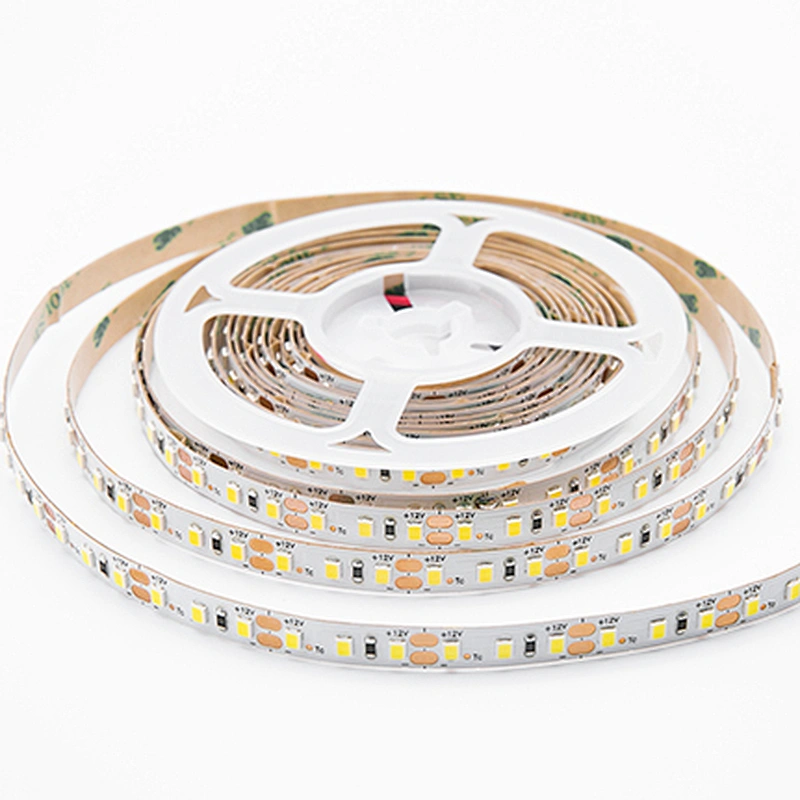

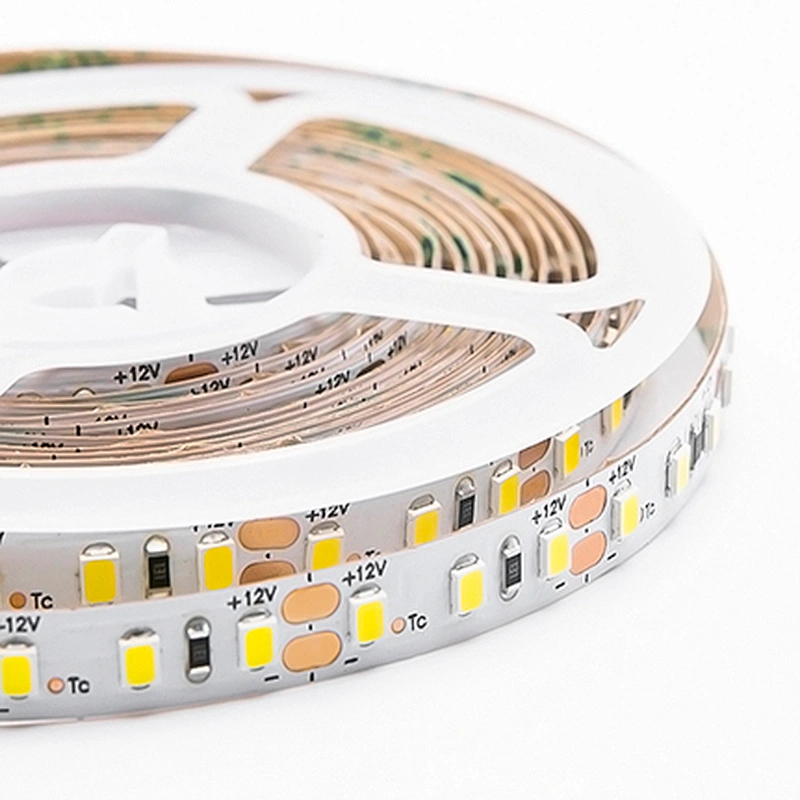

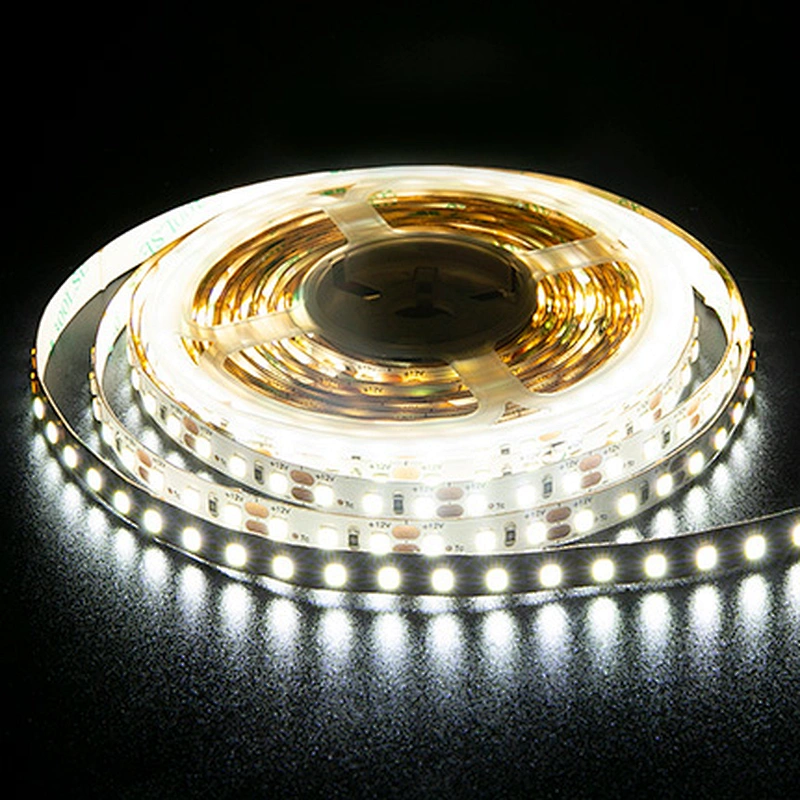

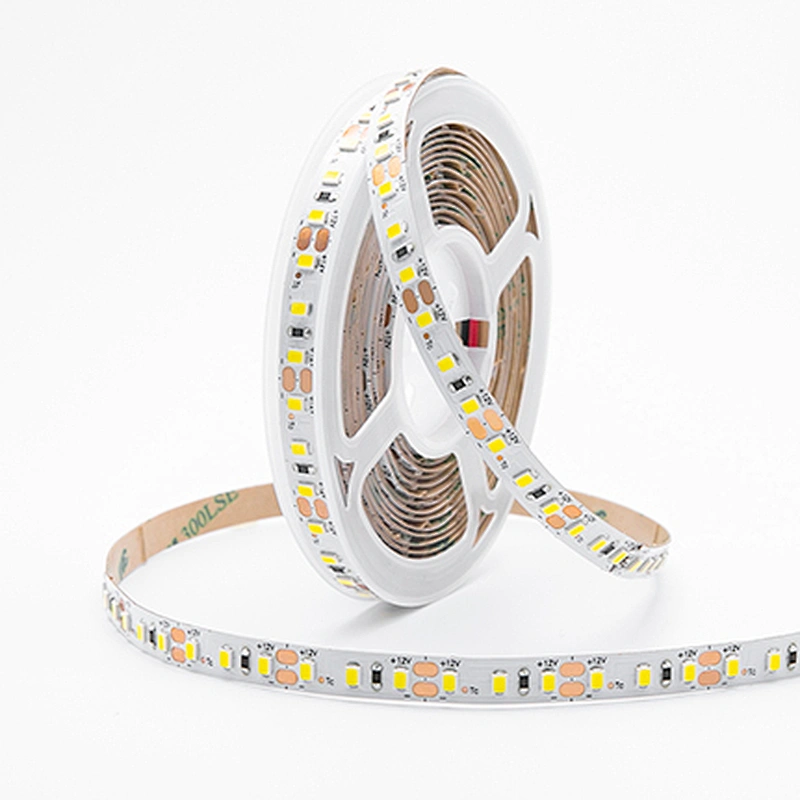

5m 12W/M 12V China 2835 LED Strip Specification

5m 12W/M 12V China 2835 LED Strip Specification

Model NO.: SE120LA8

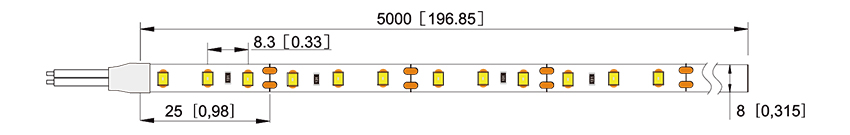

1. Dimension: 5000*8mm
2. Voltage: DC12V
3. Power: 12W/M
4. Beam Angle: 120°
5. 3 years warranty

Product Description

Features

China 2835 LED strip is powered by high output
Strip LED 2835 12v CRI 80/90/95 available
SDCM≤3, 1 BIN only
Double layer rolled copper FPC

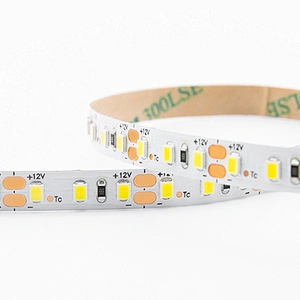

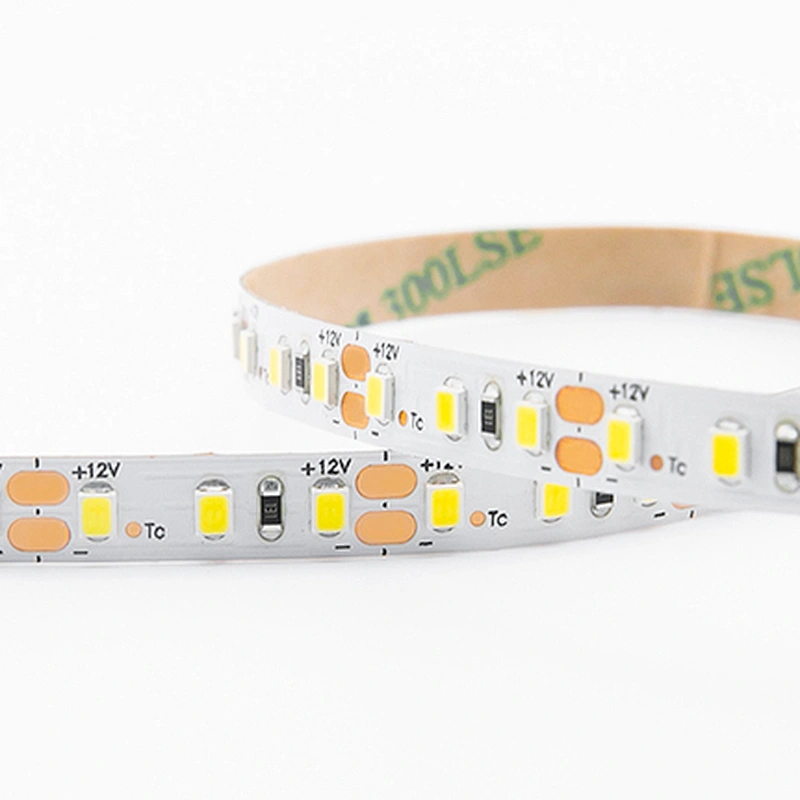

2835 LED strip specification with 3M 300LSE tape attached
CE, RoHS,UL,TUV, BIS, CB and LM-80 certified
3 years warranty

Parameters
Part Number	SE120LA8
Dimensions	5000*8mm
LED Type	2835 LED
LED Qty	120LEDs/m
Voltage	DC12V
Power	12W/M
Luminous	1260LM/M
CCT	2700-6500K
IP Grade	IP20 ( IP65/IP67/IP68 are customizable )

2835 LED Strip Series
Model	Parameters	Color/CCT
SE60LA8	SMD2835, 60LEDs/M, DC12V, 6W/M, double-layer, 5000X 8mm, 5M per reel, IP20, 630LM/M	2700-6000K
SE120LA8	SMD2835, 120LEDs/M, DC12V, 12W/M, double-layer, 5000X 8mm, 5M per reel, IP20, 1260LM/M	2700-6000K
SE60LC8	SMD2835, 60LEDs/M, DC24V, 6W/M, double-layer, 5000X 8mm, 5M per reel, IP20, 630LM/M	2700-6000K
SE120LC8	SMD2835, 120LEDs/M, DC24V, 12W/M, double-layer, 5000X 8mm, 5M per reel, IP20, 1260LM/M	2700-6000K

Product Description

5m 12W/M 12V China 2835 LED strip specification can offer different waterproof grade with IP20, IP65, IP67, IP68. Our customers can customizecan CCT: 2700K-6000K (Warm White, Natural White, Cold White).

The warm light is below 3000K, and the light is red and yellow, giving people a warm, quiet, and relaxing feeling.
The neutral light is between 3000K -5000K, and the content of red, green, and blue light accounts for the appropriate proportion. Neutral light is closest to natural light, giving people natural, comfortable, and bright.
The white light is above 5000K, and the blue light accounts for a large feeling, giving people a serious, cold, and low feeling.

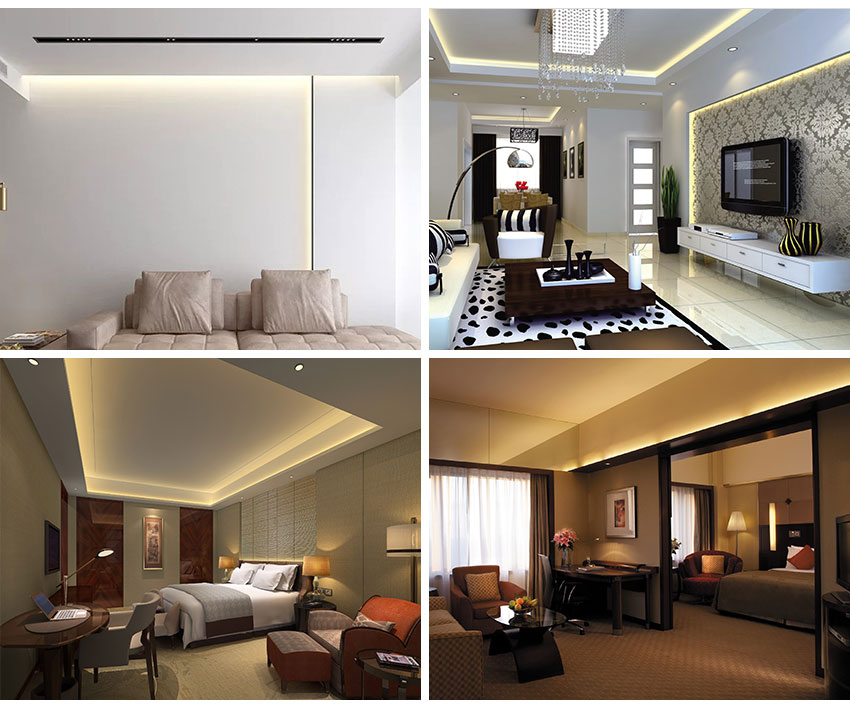

Application

China 2835 LED strip used for Bed contour, Store, Warehouse, Residential Lighting.

china 2835 led strip Application
