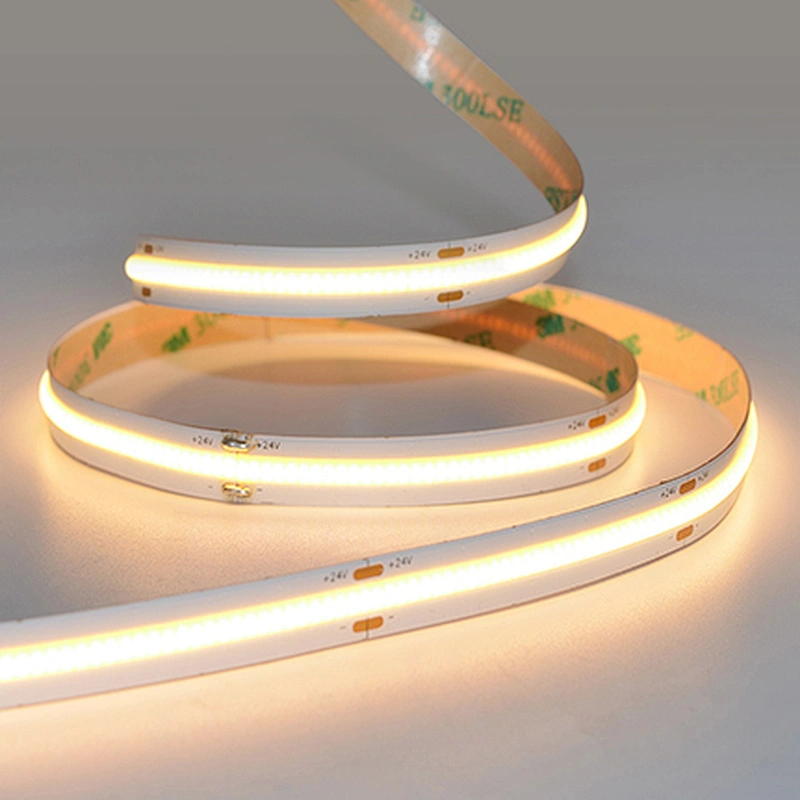

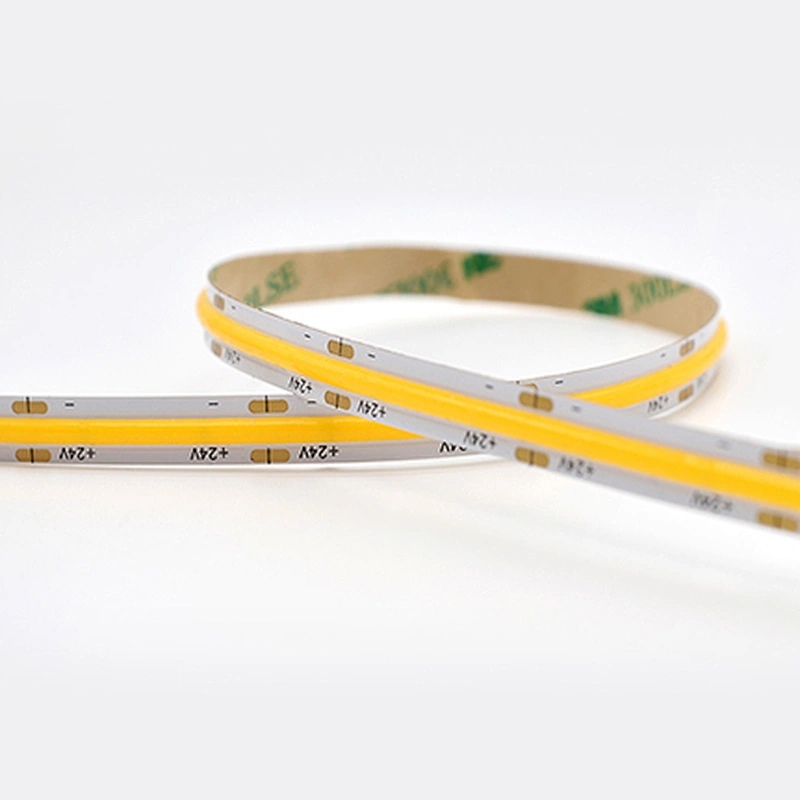

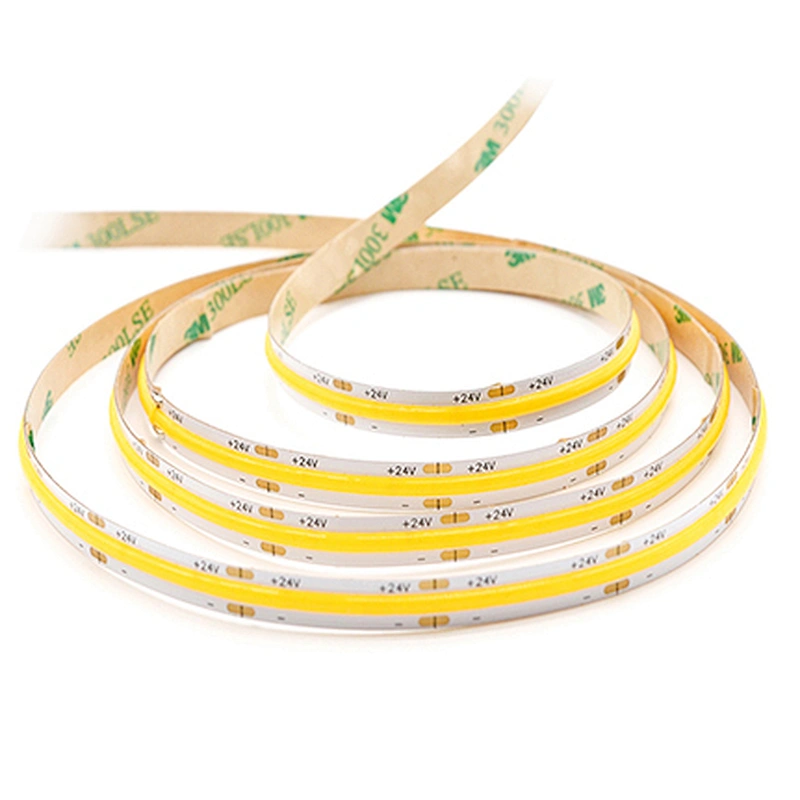

480LEDs IP20 24vdc COB LED Strips

Model NO.: SQ480LC1

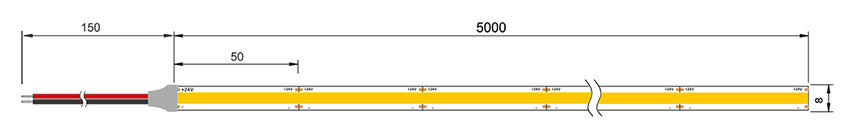

1. Dimension: 5000*8mm
2. Voltage: DC 24V
3. Power: 11W/M
4. Beam Angle: 180°
5. IP Grade: IP20
6. 3 years warranty

Product Description

Features

LED Packing Technology: The COB LED strips realize chip-on-board;
Light performance: Dot-free Linear;
The LED chip is directly packed on the FPCB board with wide beam angle 180°;
CRI 90 available, bring users with high color rendering outdoor lighting experience;
Good flexibility with 3M 300LSE tape;
CCT range: 2700K(±200K), 3000K(±200K), 4000K(±200K) , 6000K(±200K)；
UL, CE, RoHS, TUV, BIS, CB and LM-80 have been certified;
COB LED strips' Production standards: EN 55015 / EN61547 / EN60598-2-20 EN 62471 GB 7000.1 / GB7000.9.

Parameters
Part Number	SQ480LC1
Dimensions	5000*8mm
LED Type	COB LED
LED Qty	480LEDs/m
Voltage	DC24V
Power	11W/M
Luminous	1100LM/M
CCT	2700-6500K
IP Grade	IP20(IP54/IP65/IP67/IP68 are customizable)

COB LED Light Strip Series
Model	Parameters	Color/CCT
SQ312LC1	312 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (38.46mm)	2700-6500K
SQ320LC1	320 PCS chips /M, DC24V, 8W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (50mm)	2700-6500K

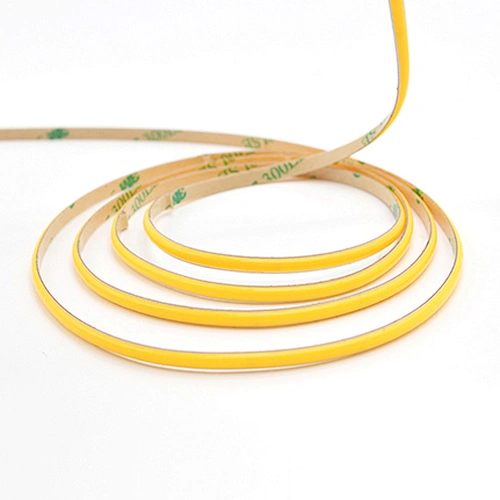

SQ384LC1	384 PCS chips /M, DC24V, 10W/M, double-layer, 5000X 5mm, 5M per reel, Cuttable length (41.66mm)	2700-6500K
SQ480LC1	480 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel,Cuttable length (50mm)	2700-6500K

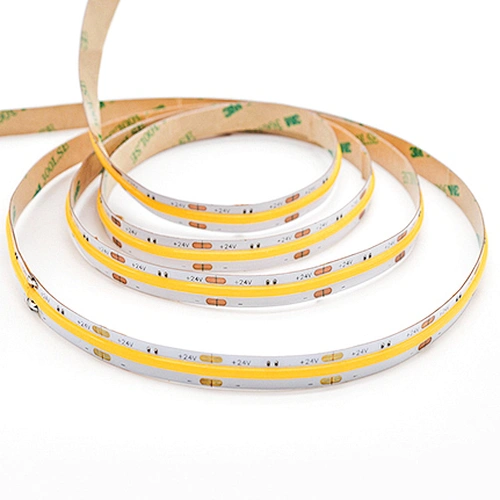

SQ528LC1	528PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (45.45mm)	2700-6500K

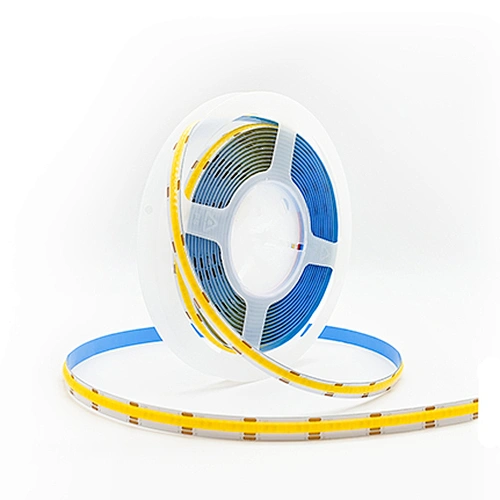

SQ608LC1	608PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (26.31mm)	2700-6500K

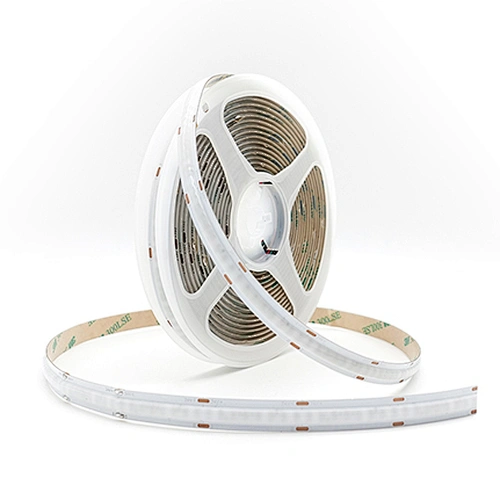

SQ768LC1	768PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (31.26mm)	RGB
SQ786LC1	786PCS chips /M, DC24V, 18W/M, double-layer, 5000X 12mm, 5M per reel, Cuttable length (31.26mm)	RGBW

Product Description

FPCB DC24V 480LEDs COB LED Strips can do different levels of waterproofing with IP20, IP54, IP65, IP67, IP68. You can choose the color 2700K-6500K, such as Warm White, Natural White, Cold White, etc.

480 inverted LED chip linear ranking;
Integrated packaging, uniform light color, no light spots, no granularity;

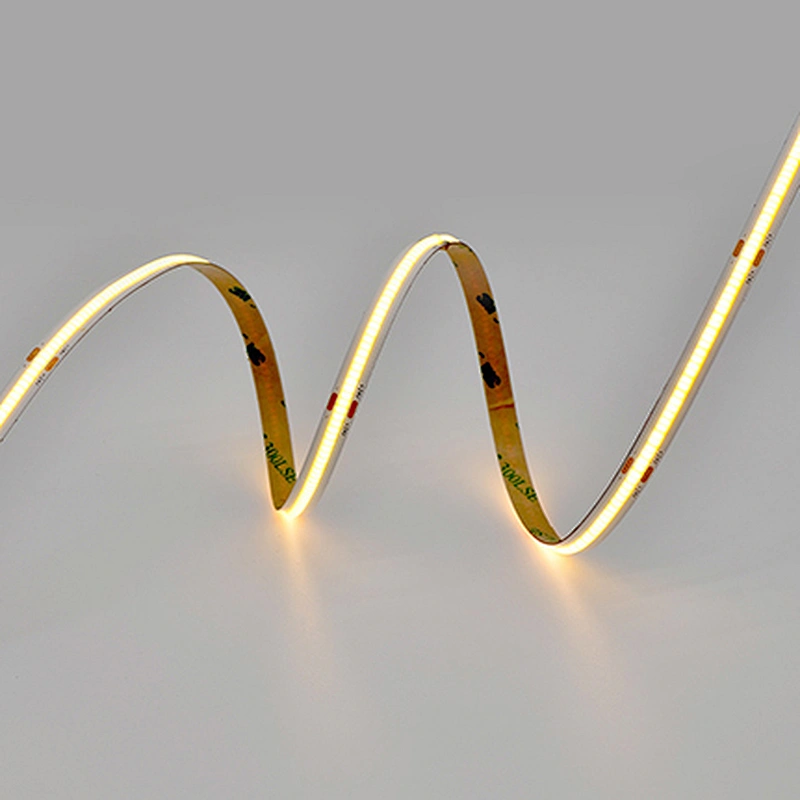

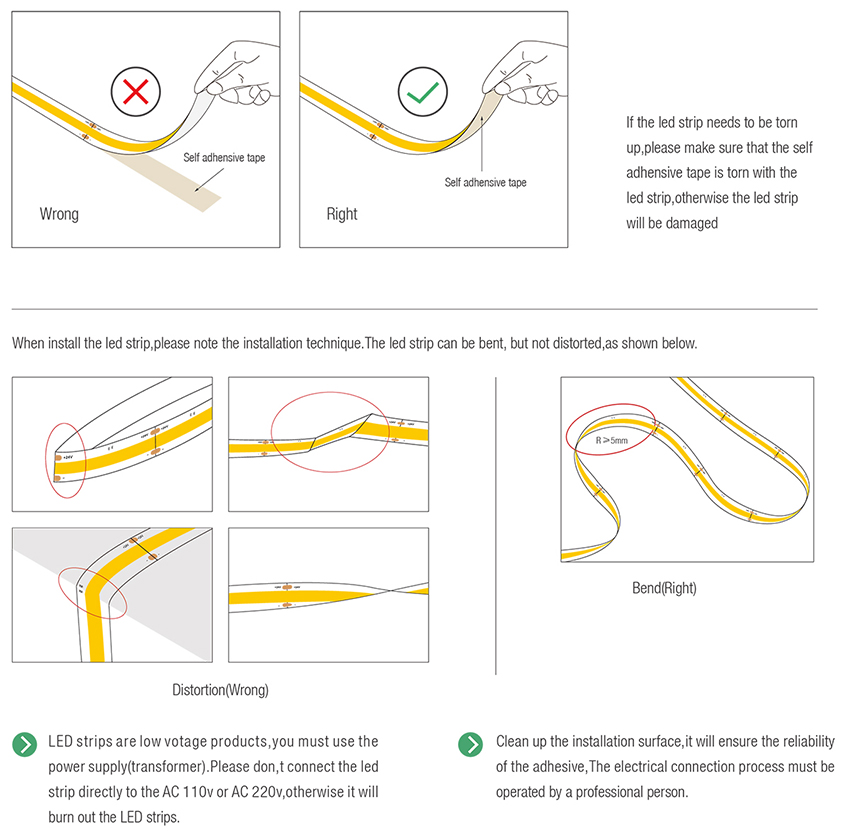

The design of the high -directional and flexible circuit board can be bent at will for easy installation;
DC 24V constant voltage design, safety low voltage, low voltage drop;

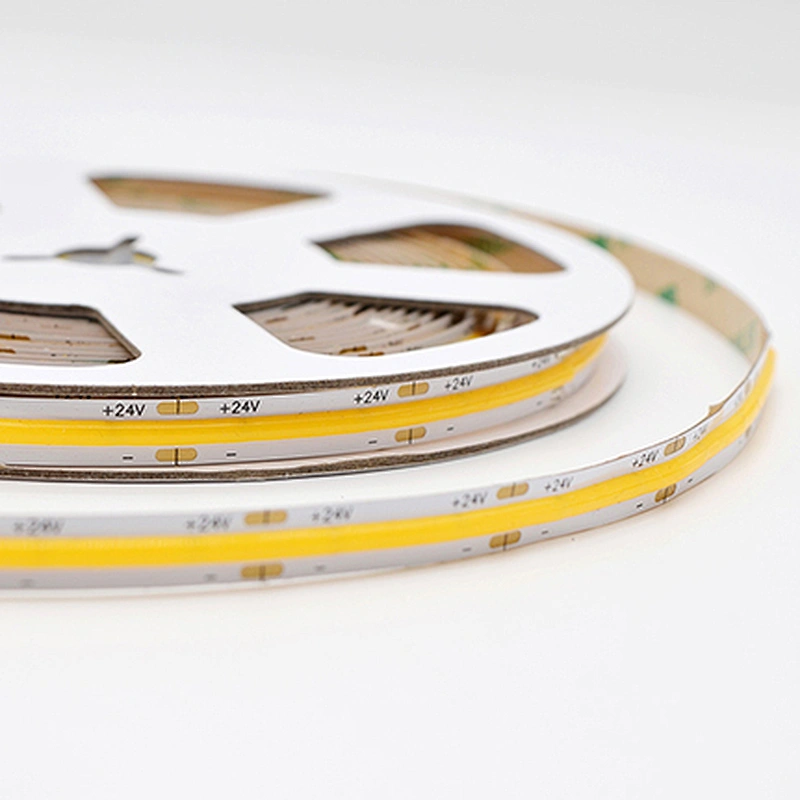

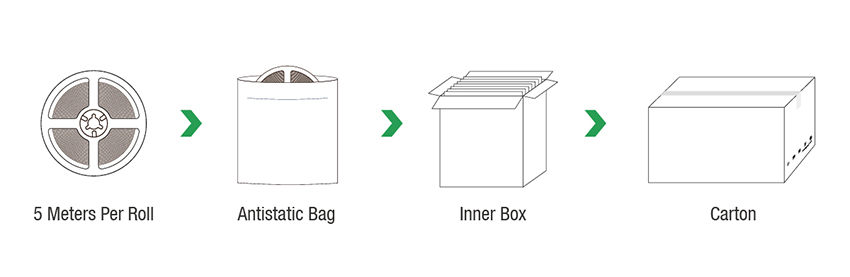

Standard is 5 meters per roll, or customized how many meters per roll according to customer requirements.

Application

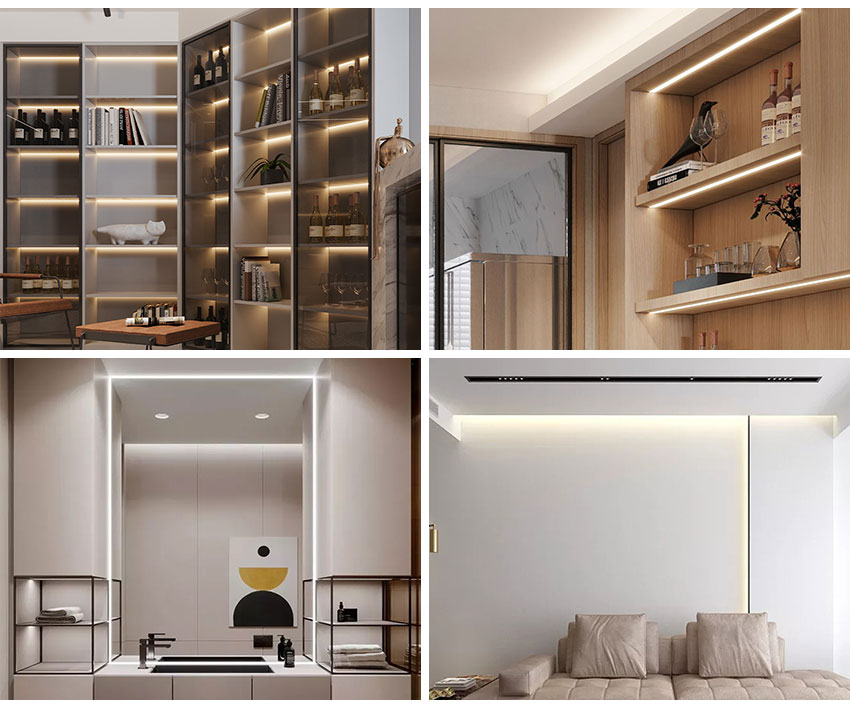

COB LED Strips come with a variety of application, conventional linear lighting such as product display lighting, home decoration lighting, auxiliary lighting, background lighting and dark slot lighting, etc.

cob led strips Application
