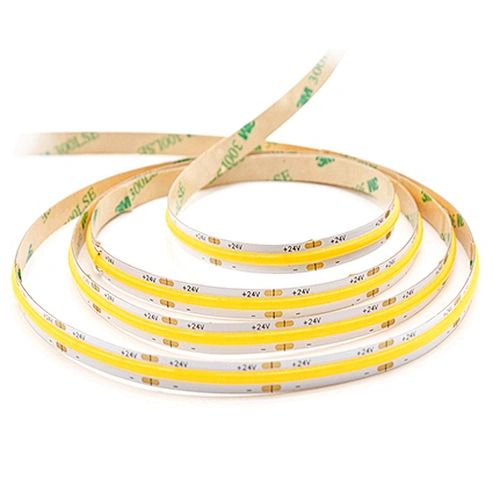

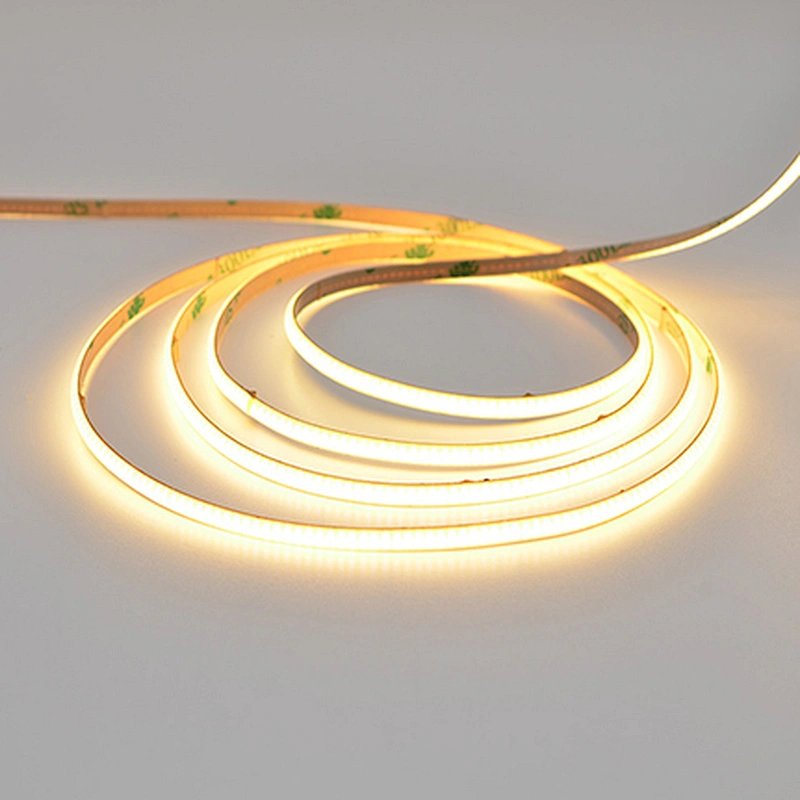

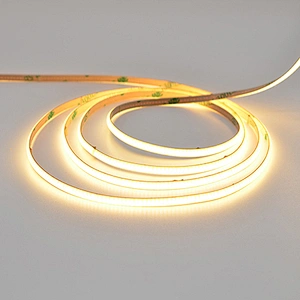

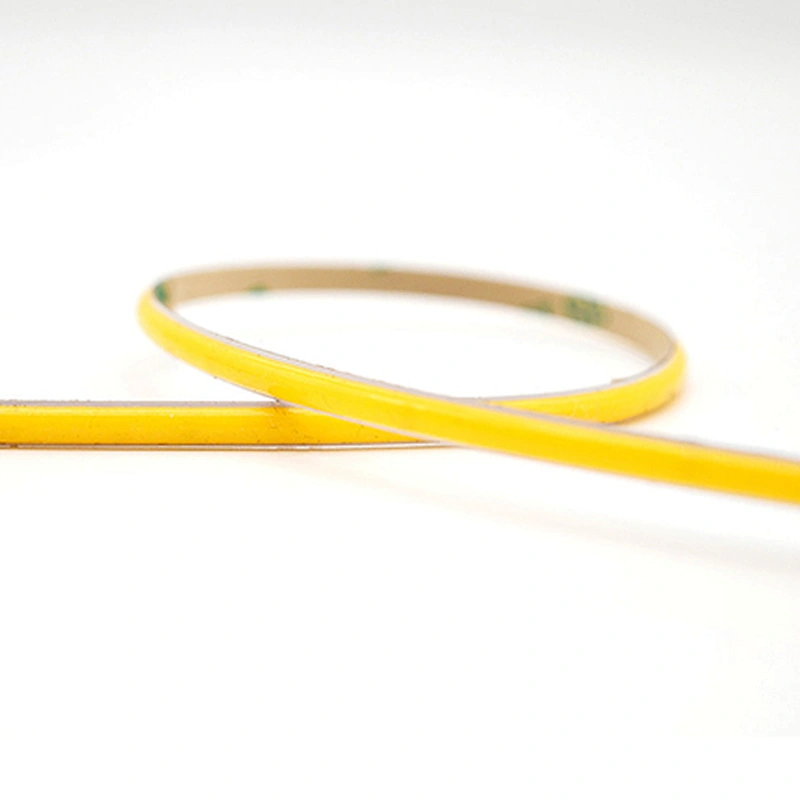

384LEDs 24v IP20 COB LED Strip

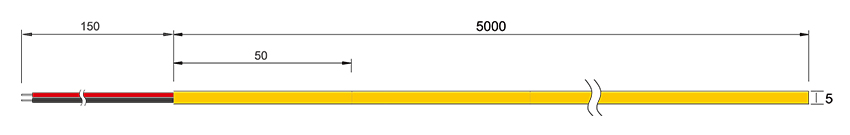

1. Dimension: 5000*8mm
2. Voltage: DC 24V
3. Power: 10W/M
4. Beam Angle: 180°
5. IP Grade: IP20
6. 3 years warranty

Features

This COB LED strip is chip-on-board of packing technology;
24v COB LED Strip lighting effect is linear;
The LED chip is directly packed on the FPCB board with wide beam angle 180°;
The COB LED Strips are IP20, Non water-proof, if you want other waterproof led strip, You can customize IP54, IP65, IP67, IP68 ;

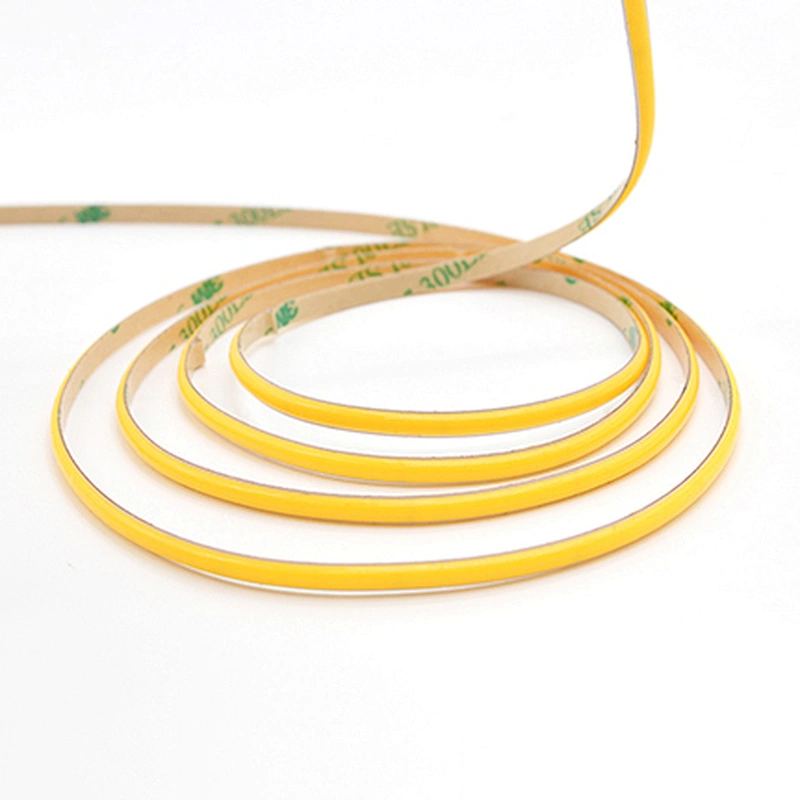

Beam angle 180° with 3M 300LSE tape;
BIS, UL, CE, RoHS, TUV, LM-80 and CB have been certified;
COB LED strips' Production standards: GB7000 / EN61547 / EN60598-2-20 EN 62471 GB 7000.1 / EN 55015.

Parameters
Part Number	SQ384LC1
Dimensions	5000*8mm
LED Type	COB LED
LED Qty	384LEDs/m
Voltage	DC 24V
Power	10W/M
Luminous	1000LM/M
CCT	2700-6500K
IP Grade	IP20(IP54/IP65/IP67/IP68 are customizable)

COB LED Light Strip Series
Model	Parameters	Color/CCT
SQ312LC1	312 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (38.46mm)	2700-6500K
SQ320LC1	320 PCS chips /M, DC24V, 8W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (50mm)	2700-6500K
SQ384LC1	384 PCS chips /M, DC24V, 10W/M, double-layer, 5000X 5mm, 5M per reel, Cuttable length (41.66mm)	2700-6500K
SQ480LC1	480 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel,Cuttable length (50mm)	2700-6500K
SQ528LC1	528PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (45.45mm)	2700-6500K
SQ608LC1	608PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (26.31mm)	3000-6000K
SQ768LC1	768PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (31.26mm)	RGB
SQ786LC1	786PCS chips /M, DC24V, 18W/M, double-layer, 5000X 12mm, 5M per reel, Cuttable length (31.26mm)	RGBW

Product Description

24v IP20 COB LED Strip can be customized IP20, IP54, IP65, IP67, IP68. Color also can be customized 2700K-6500K.

Linear ranking: 384 inverted LED chip;
Packaging is integrated, light color is uniform,and light is no spots, no granularity;
High -directional design and flexible circuit boar, easy to bent at will for installation;
24v COB LED Strip is safety voltage, so its low voltage drop;

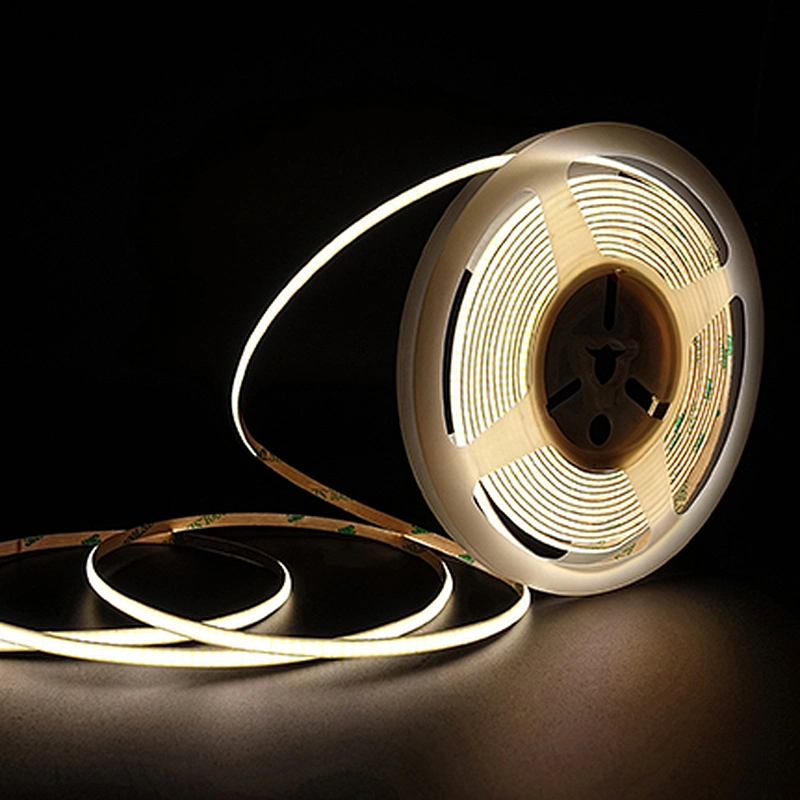

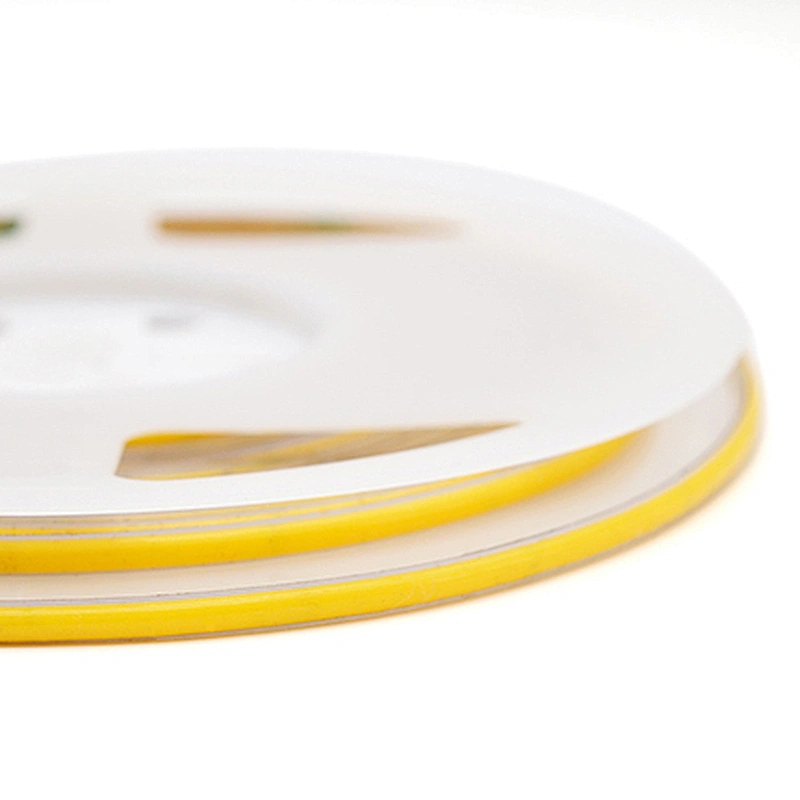

5m/roll, or customized 10m/roll, 20m/roll, ect.

Application

COB LED Strip can be used in many places in the home, cabinets, desks, living rooms, bedrooms, etc.

COB LED Strip Application
