768LEDs China Wholesale RGB COB LED Strip

768LEDs China Wholesale RGB COB LED Strip

Model NO.: SQ768LC1-RGB

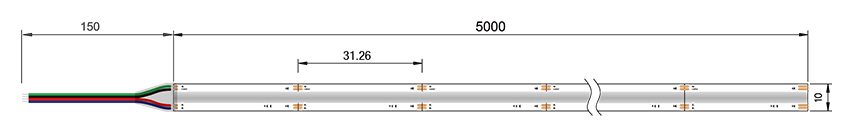

1. Dimension: 5000*10mm
2. Voltage: DC 24V
3. Power: 14W/M
4. Beam Angle: 180°
5. IP Grade: IP20
6. 3 years warranty

Product Description

Features

RGB COB LED Strip non water-proof with no spots RGB color.
TheCOB flexible LED strip antistatic grade (MIL - STD - 883 - e) : HBM level 2 (2000 ~ 4000 v).
The largest emitting angle of COB LED Strip can reach to 180°.
Welding along the cutting line on the strip, the COB LED Strip RGB can free to cut off.

Parameters
Part Number	SQ768LC1-RGB
Dimensions	5000*10mm
LED Type	COB LED
LED Qty	768LEDs/m
Voltage	DC 24V
Power	14W/M
Luminous	R120 G500 B80
CCT	RGB
IP Grade	IP20(IP54/IP65/IP67/IP68 are customizable)

COB LED Light Strip Series
Model	Parameters	Color/CCT
SQ312LC1	312 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (38.46mm)	2700-6500K
SQ320LC1	320 PCS chips /M, DC24V, 8W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (50mm)	2700-6500K
SQ384LC1	384 PCS chips /M, DC24V, 10W/M, double-layer, 5000X 5mm, 5M per reel, Cuttable length (41.66mm)	2700-6500K
SQ480LC1	480 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel,Cuttable length (50mm)	2700-6500K
SQ528LC1	528PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (45.45mm)	2700-6500K
SQ608LC1	608PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (26.31mm)	3000-6000K
SQ768LC1	768PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (31.26mm)	RGB
SQ786LC1	786PCS chips /M, DC24V, 18W/M, double-layer, 5000X 12mm, 5M per reel, Cuttable length (31.26mm)	RGBW

Product Description

Wholesale COB LED Strip RGB can be customized different IP Grade for IP20, IP54, IP65, IP67, IP68.
The color is RGB, you can create different colors of light.

768 inverted LED chip linear sorting;
Customized packaging integration service, Or standard packaging is optional;
Flexible RGB COB LED light strip, easy installation and designed to what you want;
5m/roll, 10m/roll, 20m/roll or other is available.

Application

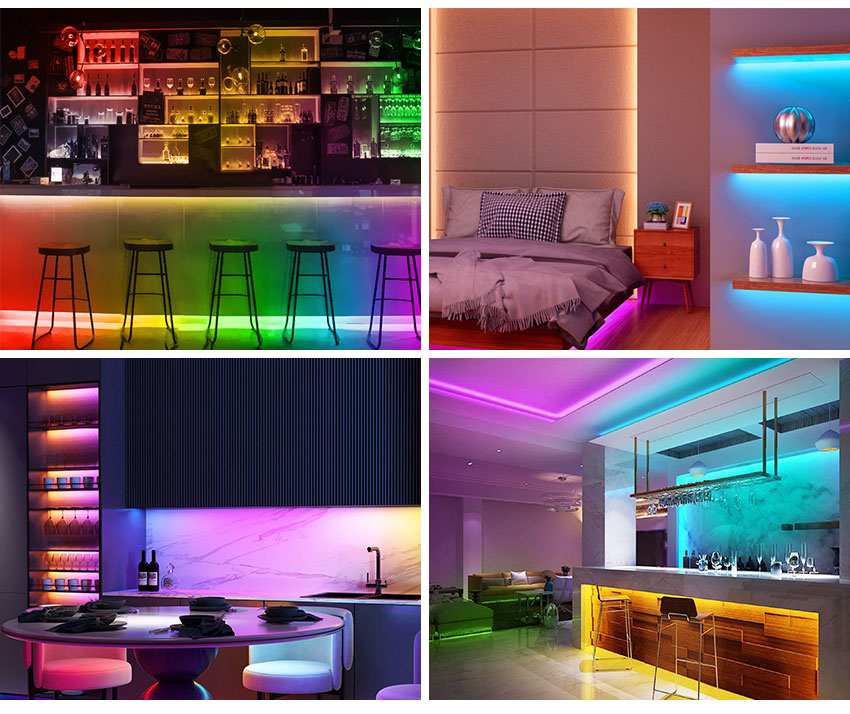

RGB COB LED Strip lights are apply for a variety of scenarios such as Theme Park, Residential light, Bar, etc.

RGB COB LED Strip Application
