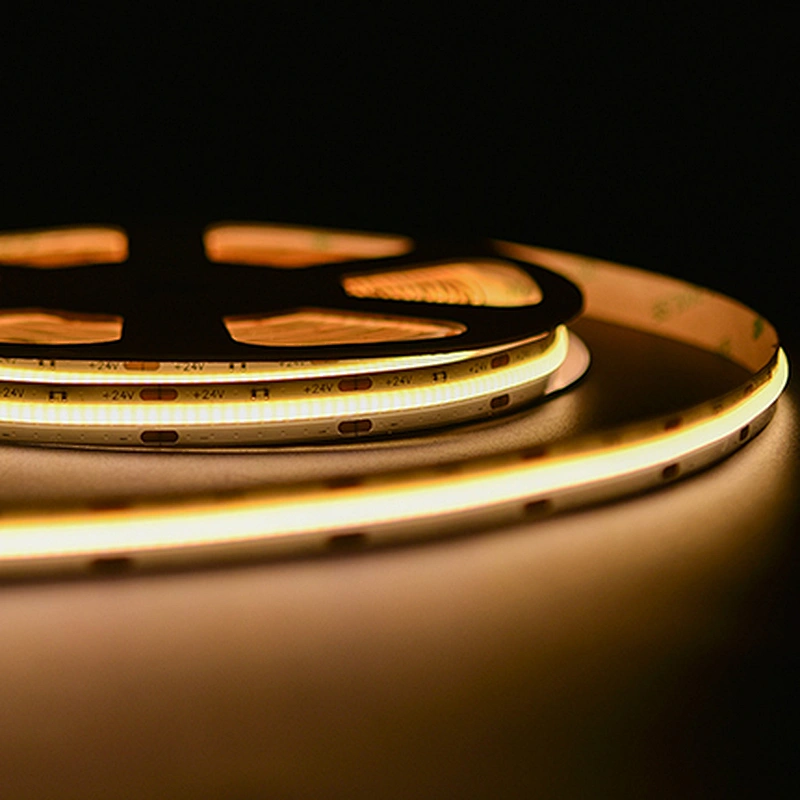

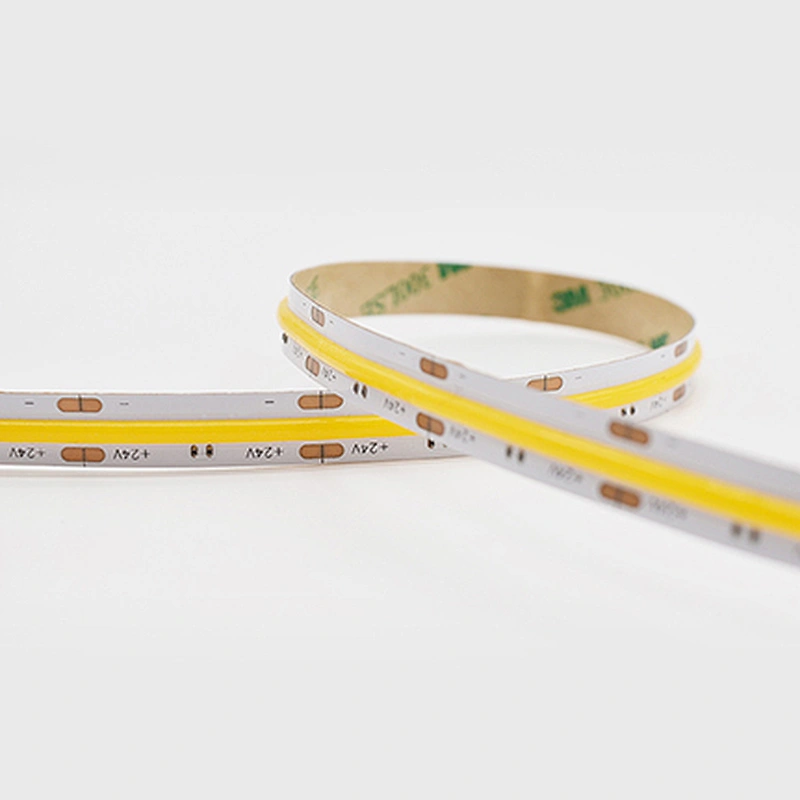

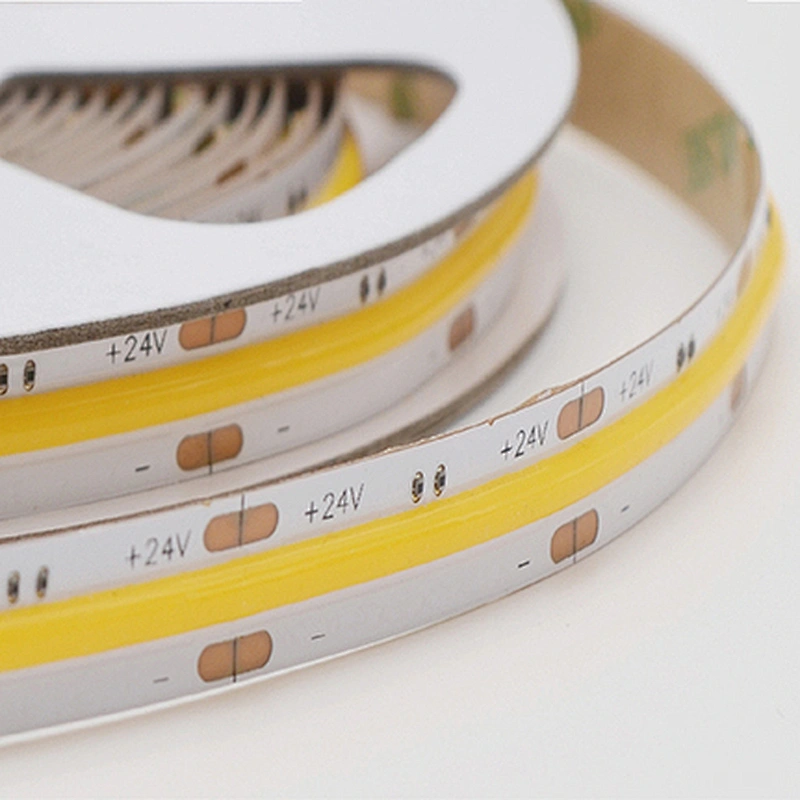

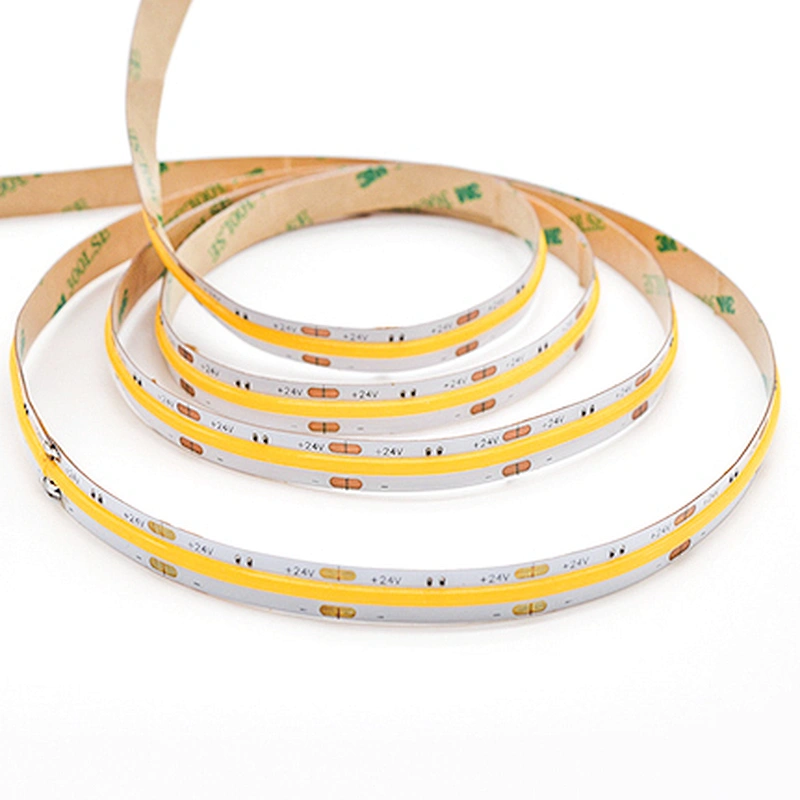

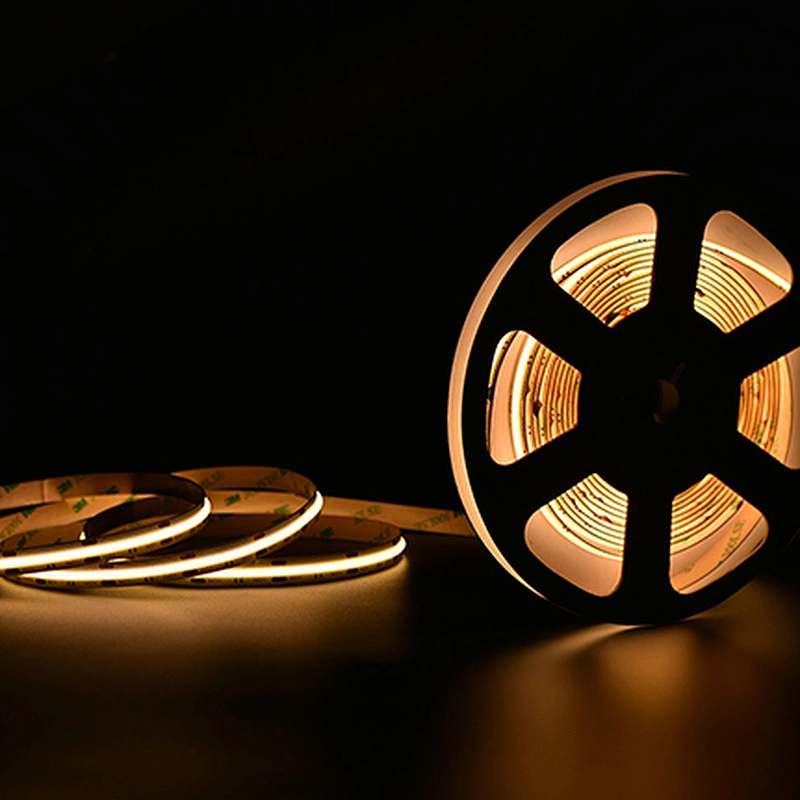

528Leds 24V Non Waterproof LED COB Light Strips

528Leds 24V Non Waterproof LED COB Light Strips

Model NO.: SQ528LC1

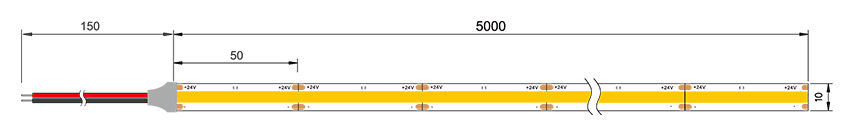

1. Dimension: 5000*10mm
2. Voltage: DC 24V
3. Power: 14W/M
4. Beam Angle: 180°
5. IP Grade: IP20
6. 3 years warranty

Product Description

Features

LED COB Light Strips realize chip-on-board LED Packing Technology;
Dot-free Linear Light performance;
Wide beam angle 180°;
CRI 90 available;
High quality with 3M 300LSE tape;
CCT range: 2700K(±200K), 3000K(±200K), 4000K(±200K) , 6000K(±200K)；
TUV, BIS, CB, UL, CE, RoHS and LM-80 have been certified;
LED COB Light Strips' Production standards: EN 55015 / EN61547 / GB7000.9 / EN60598-2-20 EN 62471 GB 7000.1.

Parameters
Part Number	SQ528LC1
Dimensions	5000*10mm
LED Type	COB LED
LED Qty	528LEDs/m
Voltage	DC24V
Power	14W/M
Luminous	1400LM/M
CCT	2700-6500K
IP Grade	IP20(IP54/IP65/IP67/IP68 are customizable)

COB LED Light Strip Series
Model	Parameters	Color/CCT
SQ312LC1	312 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (38.46mm)	2700-6500K
SQ320LC1	320 PCS chips /M, DC24V, 8W/M, double-layer, 5000X 8mm, 5M per reel, Cuttable length (50mm)	2700-6500K
SQ384LC1	384 PCS chips /M, DC24V, 10W/M, double-layer, 5000X 5mm, 5M per reel, Cuttable length (41.66mm)	2700-6500K
SQ480LC1	480 PCS chips /M, DC24V, 11W/M, double-layer, 5000X 8mm, 5M per reel,Cuttable length (50mm)	2700-6500K
SQ528LC1	528PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (45.45mm)	2700-6500K
SQ608LC1	608PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (26.31mm)	2700-6500K
SQ768LC1	768PCS chips /M, DC24V, 14W/M, double-layer, 5000X 10mm, 5M per reel, Cuttable length (31.26mm)	RGB
SQ786LC1	786PCS chips /M, DC24V, 18W/M, double-layer, 5000X 12mm, 5M per reel, Cuttable length (31.26mm)	RGBW

Product Description

24V Non Waterproof LED COB Light Strips can custom different IP grade of IP20, IP54, IP65, IP67, IP68. as well as 2700K, 3000K, 4000K, 5000K, 6000K, 6500K, etc.

528 linear ranking inverted LED chip;
Provide integrated packaging service with COB light color uniform, no particles, no spots;
Convenient to installation with high directional, flexible circuit board bent arbitrarily;
Standard package is 5 m per roll, other is available.

Application

LED COB light strips for interior, bedroom, room or outdoor.

led cob light strips Application
